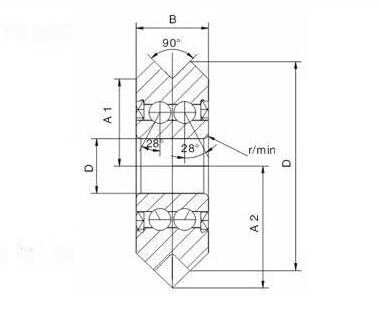

| تحديد | سؤال | يكتب: | الأبعاد (مم) | Chamfer (r/min) | تحميل (KN) | ||||
|---|---|---|---|---|---|---|---|---|---|
| د | د | ب | أ 1 | أ 2 | |||||
| W0 bearing | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1 | ||
| W0X bearing | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1 | ||
| W1 bearing | 4.763 | 19.56 | 7.87 | 7.9. | 11.86 | 0.3 | 2.2 | ||
| W1X bearing | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | ||
| W2 bearing | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | ||
| W2X bearing | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | ||
| W3 bearing | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | ||
| W3X bearing | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | ||
| W4 bearing | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | ||
| W4X bearing | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | ||
| W4XL bearing | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 20.6 | ||
| W4XXL bearing | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 20.6 | ||
| W1SSX bearing | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | ||
| W2SSX bearing | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | ||
| W3SSX bearing | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | ||
| W4SSX bearing | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | ||
