منقي

Number:
d:
D:
B:
  • إدراج الكرات مع مجموعة المسمار
  • إدراج الكرات مع مجموعة المسمار
إدراج الكرات مع مجموعة المسمار

إدراج الكرات مع مجموعة المسمار

هل تريد شراء هذا العنصر الآن؟

سنقتبس منك على الفور مع عينة مجانية وأقصر توصيل.

إرسال استفسار
PDF
Hot tags: China insert ball bearings with set screw suppliers, insert ball bearings with set screw factory, insert ball bearings with set screw price

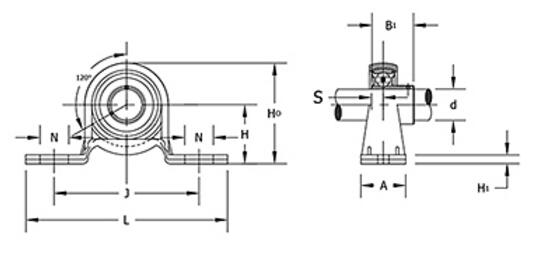

تحديدسؤالرقم الوحدةShaft Diameter Shaft HeightMounting HoleHousing LengthHousing WidthBasic Dynamic LoadBasic Static Load
دH (in)Center-to-Center J (in)L (in)A (in)Rating (Cr) lbsRating (Cor) lbs
SBPP201-12MM bearing 12 mm 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP201-8 bearing 1/2 in 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP202-10 bearing 5/8 in 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP202-15MM bearing 15 mm 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP203-11 bearing 11/16 in 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP203-17MM bearing 17 mm 0.875 2.6772 3.3858 0.9843 2158.17 1034.12
 SBPP204-12 bearing 3/4 in 1 2.9921 3.8583 1.2598 2877.55 1494.98
 SBPP204-20MM bearing 20 mm 1 2.9921 3.8583 1.2598 2877.55 1494.98
 SBPP205-14 bearing 7/8 in 1.125 3.3858 4.252 1.2598 3147.33 1764.75
 SBPP205-15 bearing 15/16 in 1.125 3.3858 4.252 1.2598 3147.33 1764.75
 SBPP205-16 bearing 1 in 1.125 3.3858 4.252 1.2598 3147.33 1764.75
 SBPP205-25MM bearing 25 mm 1.125 3.3858 4.252 1.2598 3147.33 1764.75
 SBPP206-18 bearing 1-1/8 in 1.3125 3.7402 4.6063 1.4961 4383.77 2540.34
 SBPP206-19 bearing 1-3/16 in 1.3125 3.7402 4.6063 1.4961 4383.77 2540.34
 SBPP206-20 bearing 1-1/4 in 1.3125 3.7402 4.6063 1.4961 4383.77 2540.34
 SBPP206-30MM bearing 30 mm 1.3125 3.7402 4.6063 1.4961 4383.77 2540.34
SBPP206-30MM bearing 30 mm 1.3125 3.7402 4.6063 1.4961 4383.77 2540.34
 SBPP207-20 bearing 1-1/4 in 1.5625 4.1732 5.0787 1.6535 5777.59 3439.58
 SBPP207-21 bearing 1-5/16 in 1.5625 4.1732 5.0787 1.6535 5777.59 3439.58
 SBPP207-22 bearing 1-3/8 in 1.5625 4.1732 5.0787 1.6535 5777.59 3439.58
 SBPP207-23 bearing 1-7/16 in 1.5625 4.1732 5.0787 1.6535 5777.59 3439.58
 SBPP207-35MM bearing 35 mm 1.5625 4.1732 5.0787 1.6535 5777.59 3439.58
